Overview

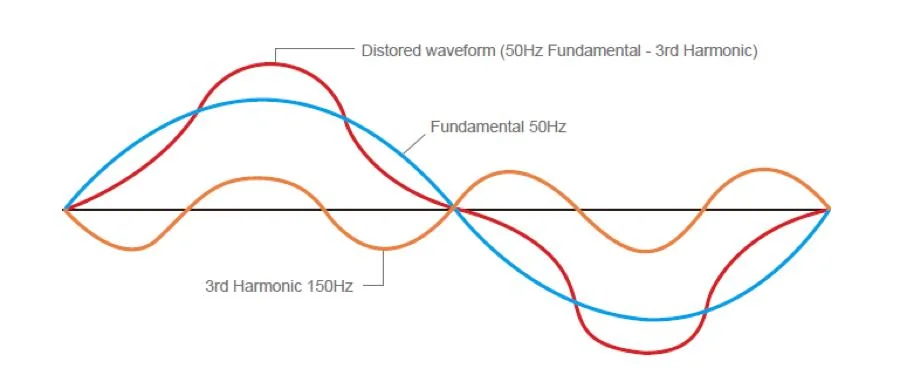

Harmonic analysis is a technique used to study and analyze the harmonic components in electrical power systems. It helps identify the presence and impact of harmonic currents and voltages, which are integer multiples of the fundamental frequency and are commonly generated by non-linear loads such as power electronics, variable speed drives, and certain lighting systems. At Limbaja Energy, we provide Harmonic Analysis Services in Gujarat for industries across Gujarat and India. Our Power Quality Analysis and Electrical Harmonic Study Services help identify harmonic distortion, improve power quality, protect sensitive equipment, and enhance the reliability and efficiency of electrical systems. We also recommend effective harmonic mitigation solutions to reduce power losses and ensure stable system performance.

Harmonic analysis

Harmonic Analysis Power Quality Inspection - Limbaja Energy

Harmonic analysis

Scope of Work

Measurement of Harmonic at main plant LT or HT or Individual LT line.
Measurement of Total Harmonic Distortion of Individual Phase – Voltage & Current.
Measurement and analysis of Harmonics (up to 50th) as per standards (IEEE 519/IEC 61000 -3-2/3/4).
Method uses for Harmonic Study is 3 Phase 3 Wire Method.
Identification, Suggestion and Design Harmonic Filter of Decrease the harmonic of plant level.

Problems Caused by Harmonics

Blinking of Incandescent Lights - Transformer Saturation
Capacitor Failure - Harmonic Resonance
Circuit Breakers Tripping - Inductive Heating and Overload
Electronic Equipment Shutting down - Voltage Distortion
Flickering of Fluorescent Lights - Transformer Saturation
Fuses Blowing for No Apparent Reason - Inductive Heating and Overload
Motor Failures (overheating) - Voltage Drop
Neutral Conductor and Terminal Failures - Additive Triplen Currents
Electromagnetic Load Failures - Inductive Heating
Overheating of Metal Enclosures - Inductive Heating
Power Interference on Voice Communication - Harmonic Noise
Transformer Failures - Inductive Heating

Suggestions

Option 1: What are the advantages of using Harmonic Filter (Detuned) Reactor?

  • Prevents harmonic current and voltage amplitude from increasing in systems with non-linear loads.
  • Limits the harmonic current flowing on the capacitor. This prevents heat and high current stresses and allows the capacitors to have a longer operating life.
  • Prevents to overcurrent and heating problems on transformers, bus bars, cables, switchgear, protection equipment, etc.

Option 2: Install the Active filter

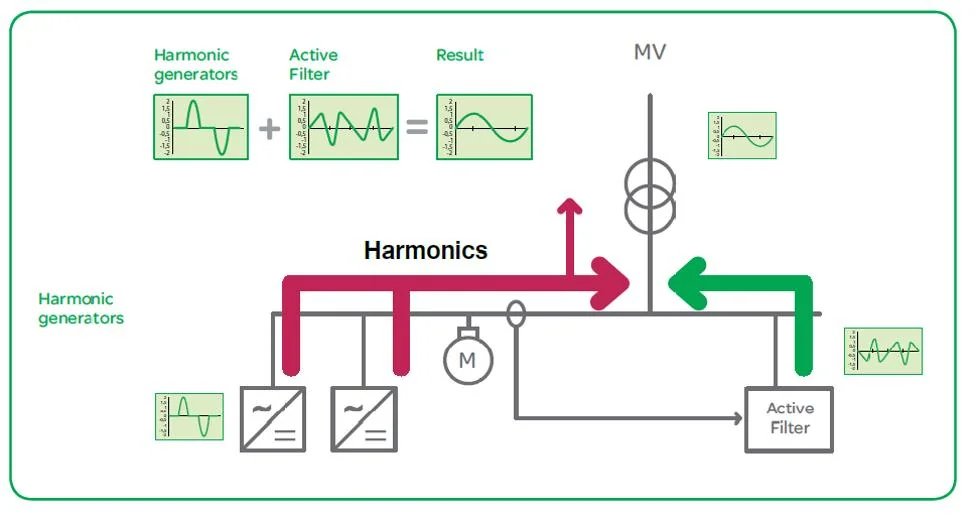

  • Install the Active filter In the plant for reduce the harmonic.
Option 2: Install the Active filter

Total Harmonic Distortion at Transformer

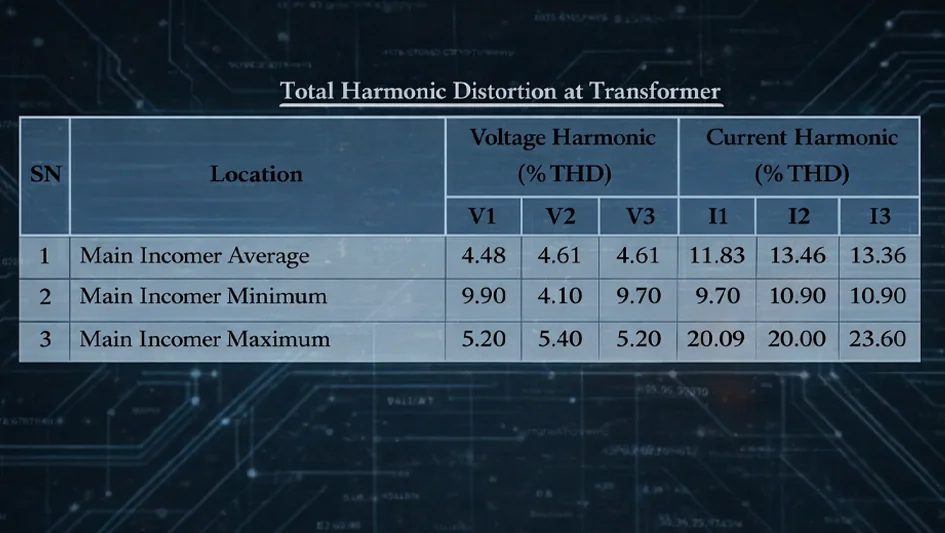

Total Harmonic Distortion at Transformer Diagram

Total Harmonic Distortion at Transformer

Individual Harmonic Distortion in Voltage

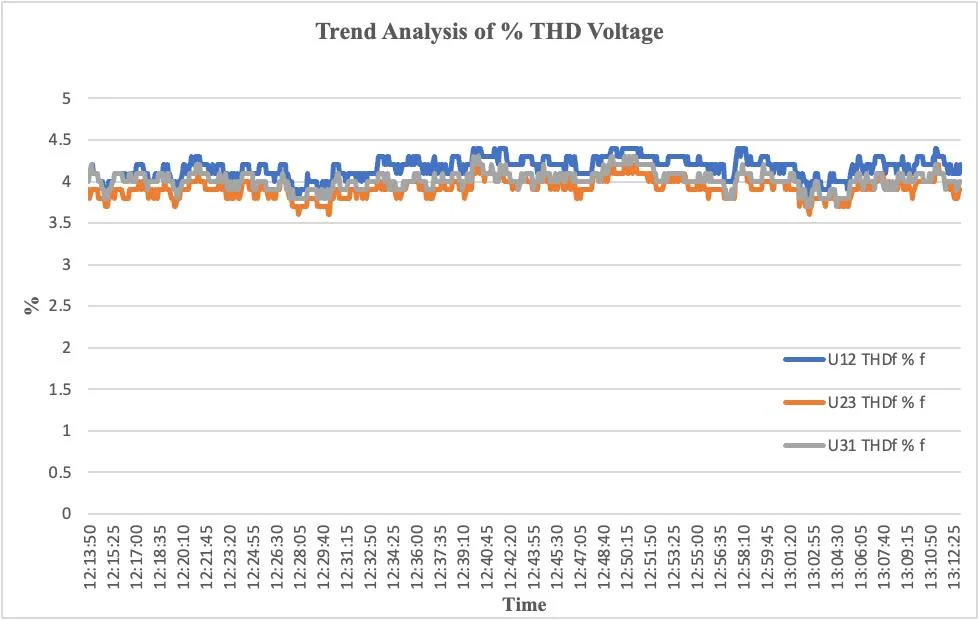

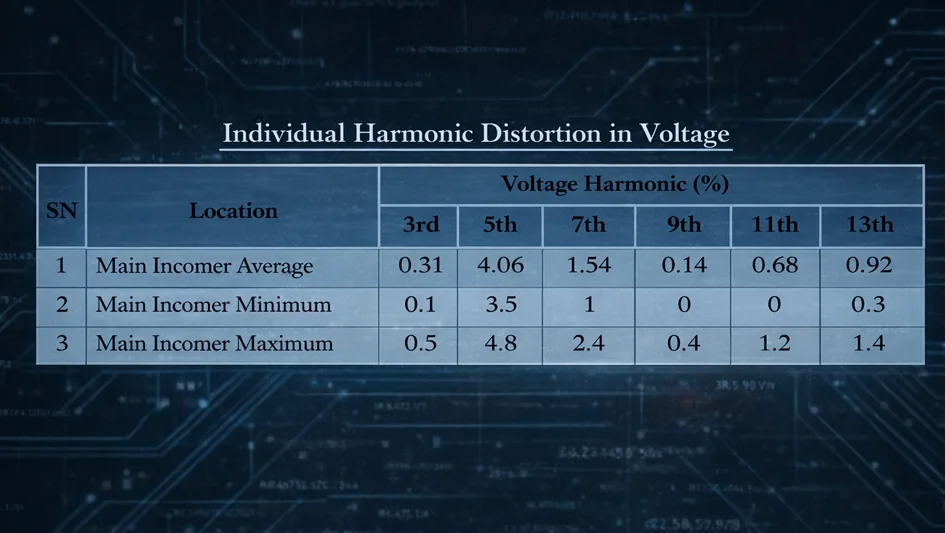

Individual Harmonic Distortion in Voltage Graph

Individual Harmonic Distortion in Voltage

Individual Harmonic Distortion in Current

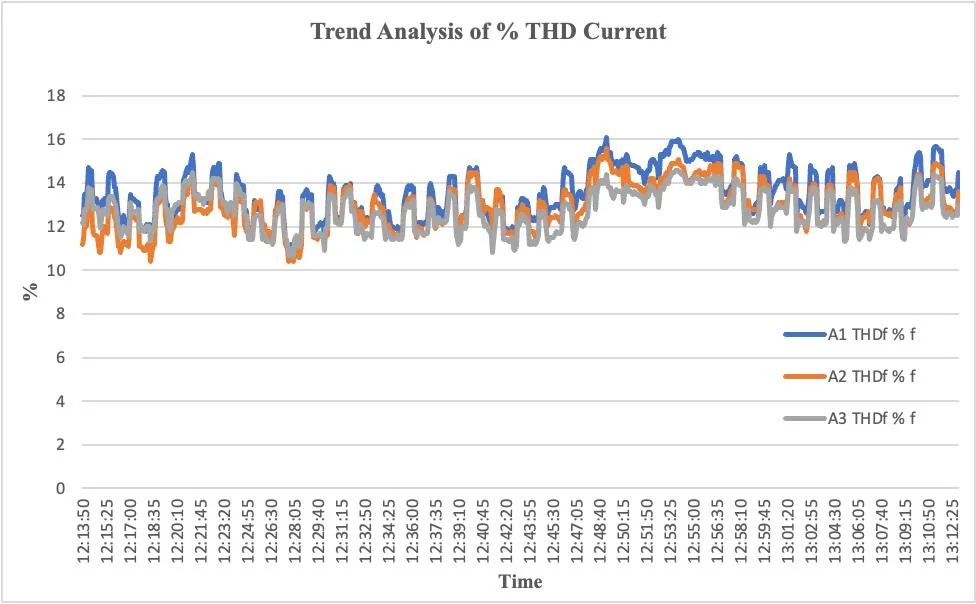

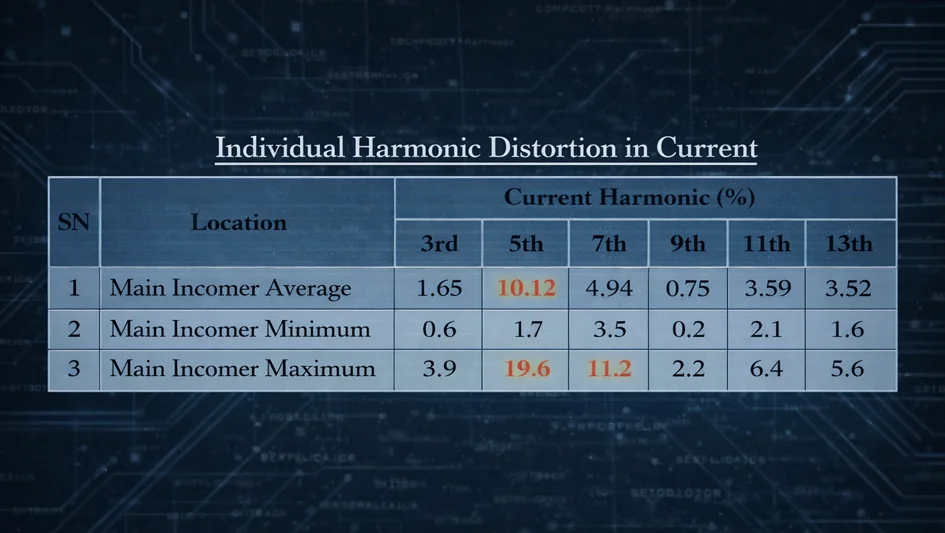

Individual Harmonic Distortion in Current Graph

Individual Harmonic Distortion in Current

Harmonic Analysis Measurement Spectrum 1
Harmonic Analysis Measurement Spectrum 2
